Function features:

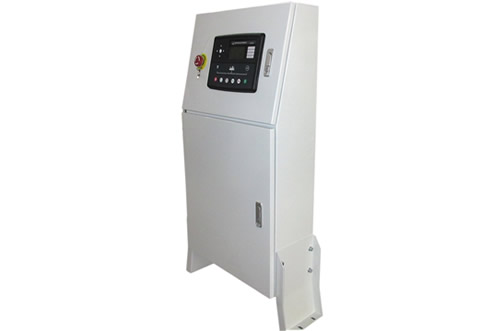

Surface of the cabinet was coated withelectrostatic spray which gives the cabinet corrosion resistance,neat appearance, and installation flexibility;

Core element of the control cabinet is theoriginal DSE controllers from UK. Different modules can be installed, and userscan choose according to different function requests e.g. DSE 4620 for smallpower generators, 6020 for small and medium gensets, and 7320 for gensets ofbig power with communication function needs:

Control cabinet                 Engine type                                     Controller module

HW-4620                  Non-electronic engine                               DSE 4620

HW-6020                  Electronic andNon-electronic engine           DSE 6020

HW-7320                  Electronic and Non-electronicengine           DSE 7320

The control system provide comprehensiveprotection for the whole gensets. The engine protection includes: low oilpressure, high water temperature, low oil volume, over speed, low speed, andlow battery voltage, etc. Alternator protection includes: high voltage, lowvoltage, high frequency, low frequency and excess current, etc.

Emergency stop button are available on thepanel, and the key switch is for power on/off of the controller.

Side board is added to one side of thecabinet for installation of the governor or charger; crash pad can be installedto the cabinet (optional).
